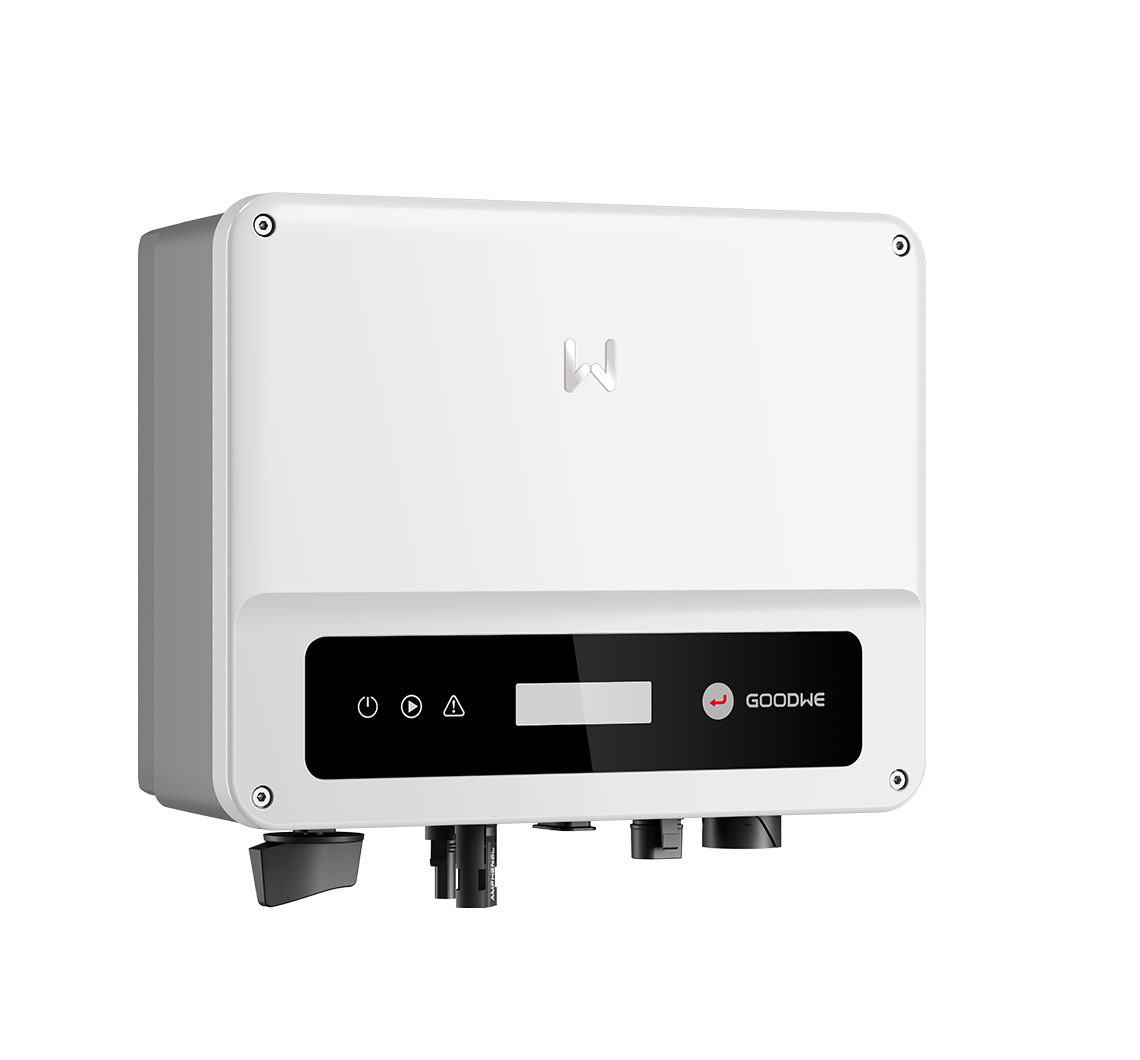

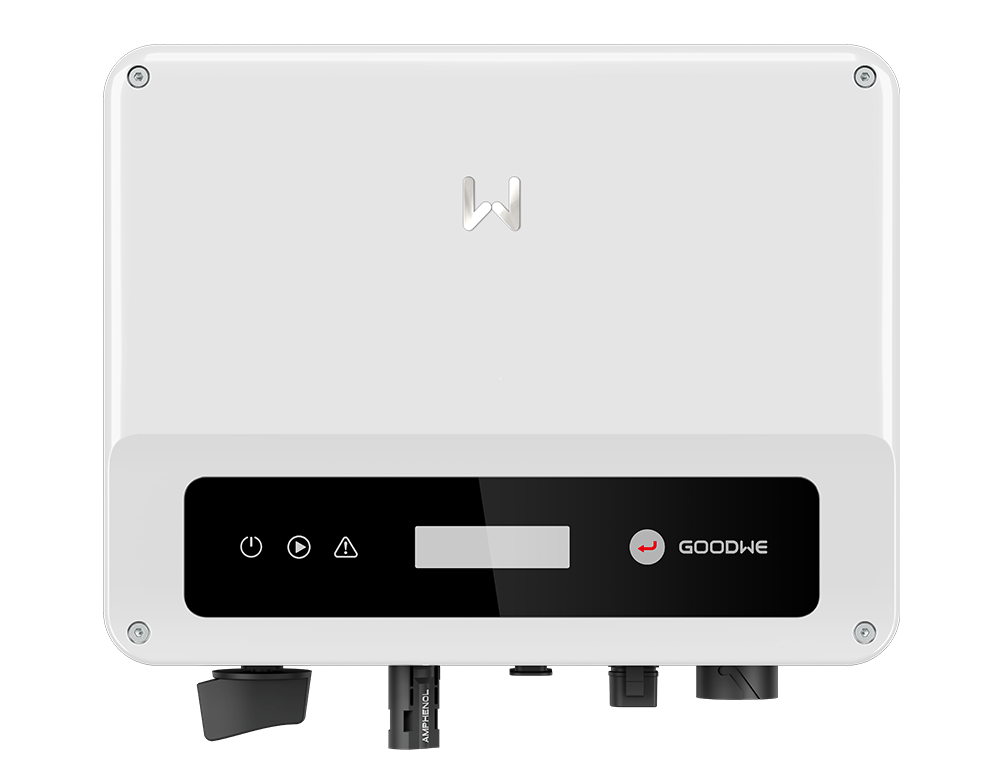

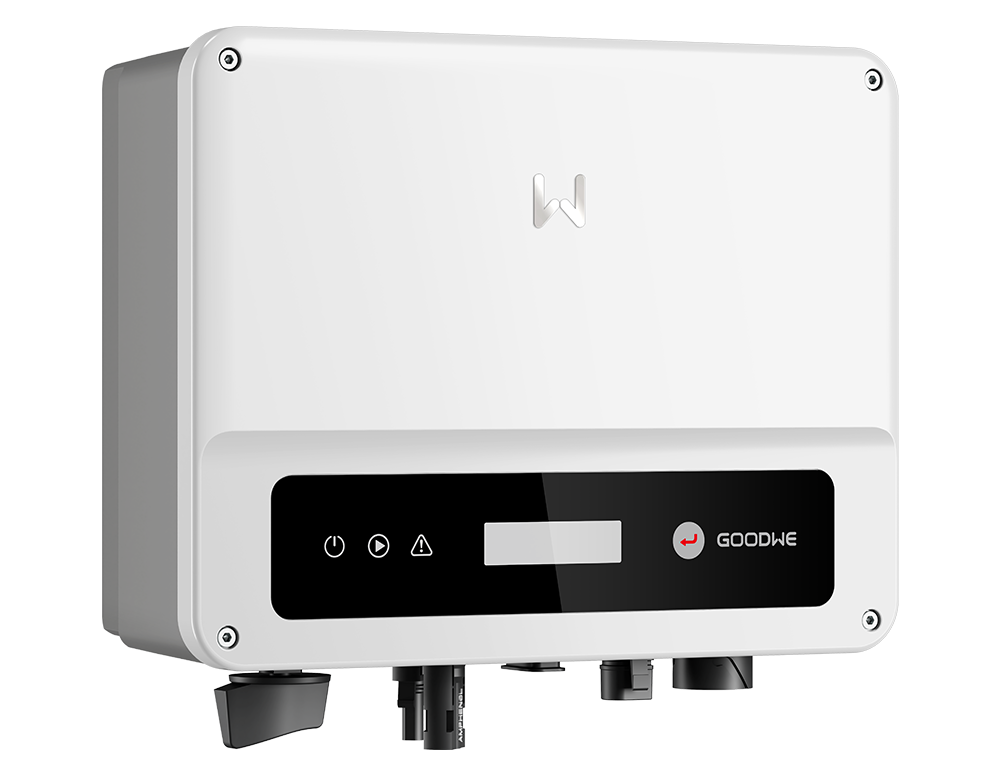

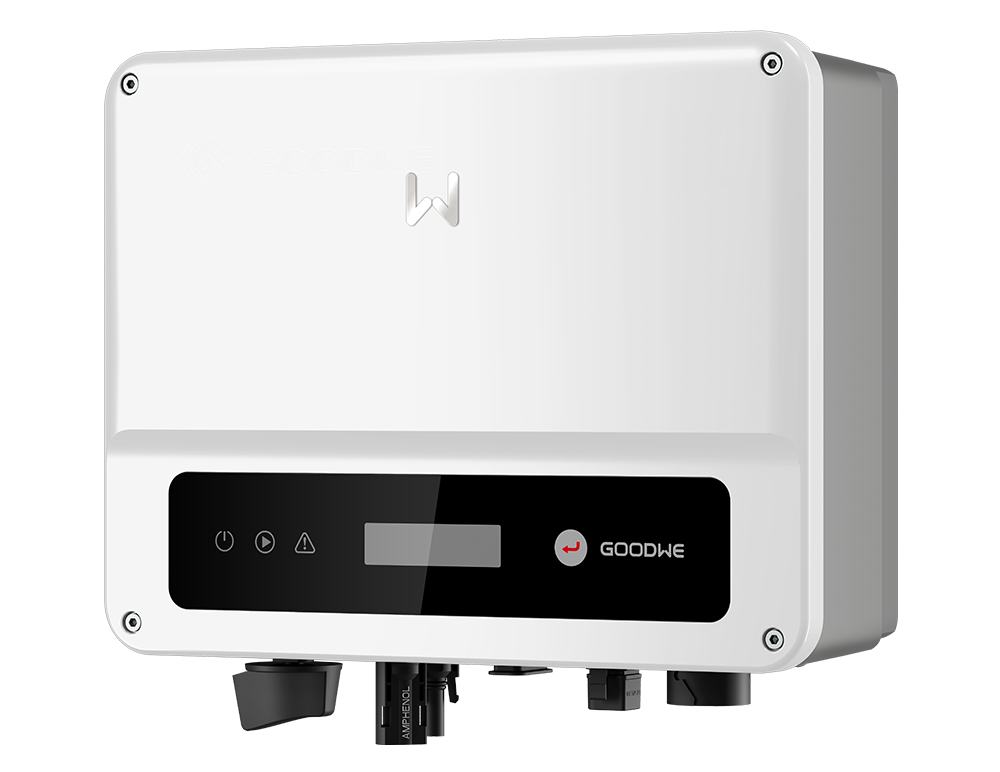

The brand new XS model from GoodWe is an ultra-small residential solar inverter specifically designed to bring comfort and quiet operation as well as high efficiency to households. Its capacity ranges from 0.7kW to 3.0kW and its most outstanding characteristic is light weight, which is only 5.8kg and as well as its extremely compact size equivalent to an A4 paper, that make it particularly easy to carry & install.
Remarkably, it offers a 130% of DC input oversizing and it’s able to achieve a maximum European efficiency of 97.2%. Conveniently, the communication options available on this inverter are both LAN and Wi-Fi.
A4 size
Light weight
130% DC oversizing
97.6% Max.efficiency
110% AC overloading
40V start-up voltage
A4-sized
5.8kg
undefined
undefined
A4 Size, Super Light
Compressing 3kW DC/AC transforming technology into an A4 size inverter is unbelievable. However, GoodWe did it! Weighing less than 6 kg, inverters can be easily installed! Additionally, it also significantly reduces shipment and stock cost.
LAN/Wi-Fi Communication
An optional LAN/Wi-Fi communication offers customers different monitoring methods to cater for different needs. Customers are able to choose the most convenient way to monitor their solar systems. It also allows the customer to switch into another monitoring method after installation. GoodWe cares about your feelings and experiences.
Small, light, compact, and capable.
Even though the XS Series is extremely compact and tiny, it doesn’t mean standard features are sacrificed. The XS is still equipped with 130% DC oversizing capability which allows full load output during extreme weather conditions and what’s more, its European Efficiency can reach 97%, which is even more compared to its predecessors.
97.2%
European Efficiency
OVERVIEW
Model
GW3000-XS
Max. vstupní napětí (V)
500
Max. vstupní proud na jeden MPPT (A)
12.5
Počet MPP trackerů/Počet stringů na jeden MPPT
1/1
Hmotnost (kg)
5.8
Jmenovité výstupní napětí (V)
230
Model
GW2500-XS
Max. vstupní napětí (V)
500
Max. vstupní proud na jeden MPPT (A)
12.5
Počet MPP trackerů/Počet stringů na jeden MPPT
1/1
Hmotnost (kg)
5.8
Jmenovité výstupní napětí (V)
230
Model
GW2000-XS
Max. vstupní napětí (V)
500
Max. vstupní proud na jeden MPPT (A)
12.5
Počet MPP trackerů/Počet stringů na jeden MPPT
1/1
Hmotnost (kg)
5.8
Jmenovité výstupní napětí (V)
230
Model
GW1500-XS
Max. vstupní napětí (V)
500
Max. vstupní proud na jeden MPPT (A)
12.5
Počet MPP trackerů/Počet stringů na jeden MPPT
1/1
Hmotnost (kg)
5.8
Jmenovité výstupní napětí (V)
230
Model
GW1000-XS
Max. vstupní napětí (V)
500
Max. vstupní proud na jeden MPPT (A)
12.5
Počet MPP trackerů/Počet stringů na jeden MPPT
1/1
Hmotnost (kg)
5.8
Jmenovité výstupní napětí (V)
230
Model
GW700-XS
Max. vstupní napětí (V)
500
Max. vstupní proud na jeden MPPT (A)
12.5
Počet MPP trackerů/Počet stringů na jeden MPPT
1/1
Hmotnost (kg)
5.8
Jmenovité výstupní napětí (V)
230
