Compact
Light weight

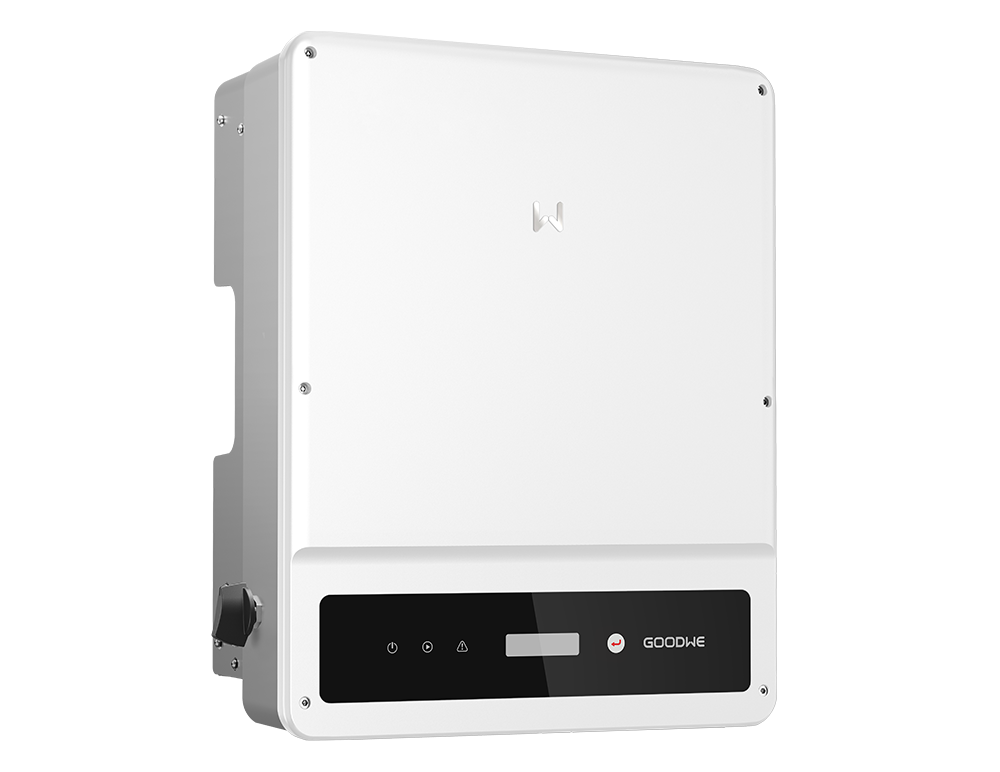

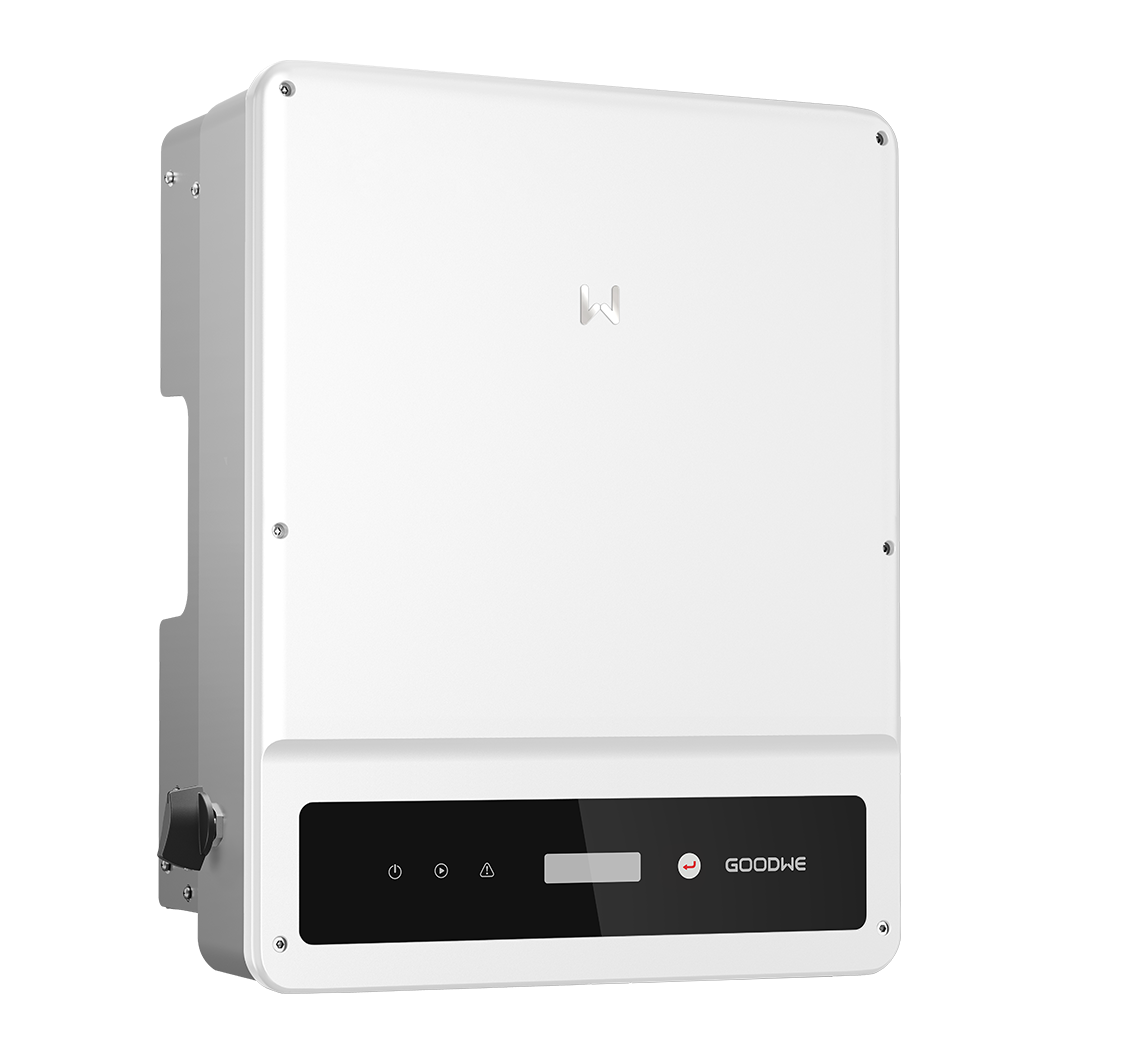

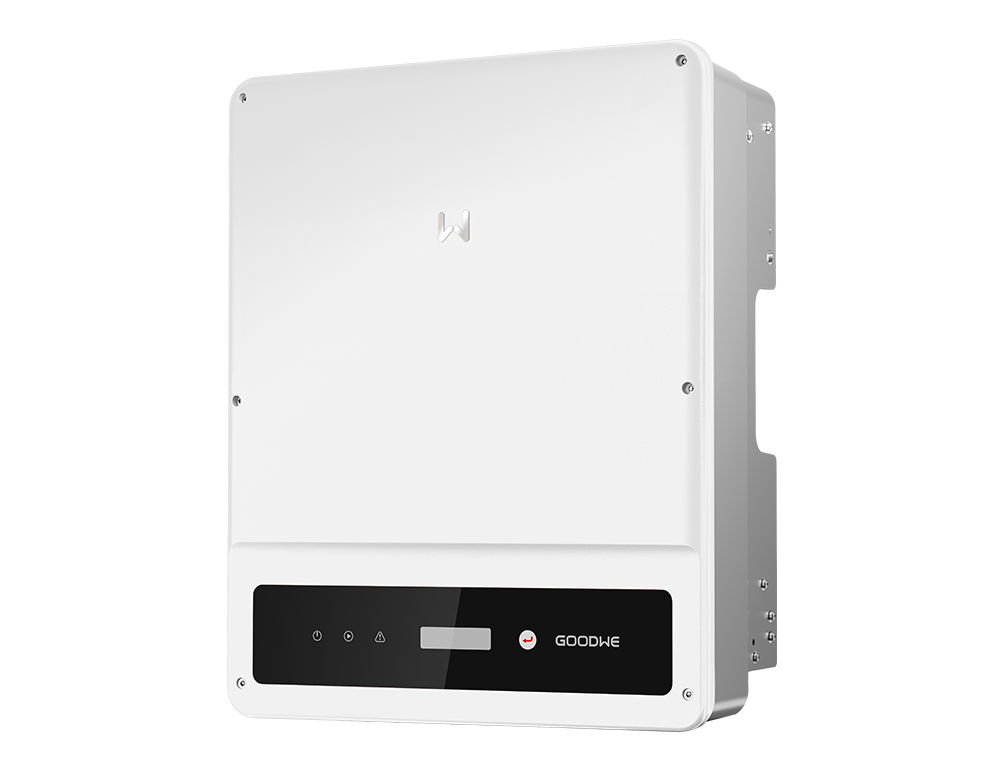

The GoodWe 17-25 kW SDT G2 series inverter is especially designed for three-phase residential and small commercial projects. With its compact design, the SDT G2 inverter is 45% smaller than the first generation. The inverter is also light and easy to install. The maximum efficiency of this inverter is as high as 98.4%. With an advanced ventilation system, the inverter is able to dissipate heat efficiently. In addition, it can be customised with an integrated LCD screen.
Compatible with bifacial modules
Compact and light weight
150% DC input oversizing & 110% AC output overloading
Max. efficiency 98.4%
Compact
Light weight
Data Security
The inverter has data breakpoint resuming function, which means it can re-upload data to the monitoring system when it reconnects to the server after going off-line. The data is encrypted during the transmission process and data on the server has backup. All these features ensure data security.
Compact Size & High Power Density
For a 17-25 kW inverter, it is relatively small and light, which makes it easily transportable. Its compact design also allows for quick and easy installation.
OVERVIEW
Model
GW17KT-DT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
25/25
Number of MPP trackers/Number of Strings per MPPT:
2/2
Max. Efficiency
17
Nominal Output Voltage (V)
400,3L/N/PE
Model
GW20KT-DT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
25/25
Number of MPP trackers/Number of Strings per MPPT:
2/2
Max. Efficiency
20
Nominal Output Voltage (V)
400,3L/N/PE
Model
GW25KT-DT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
37.5/25
Number of MPP trackers/Number of Strings per MPPT:
3/2
Max. Efficiency
25
Nominal Output Voltage (V)
400,3L/N/PE
