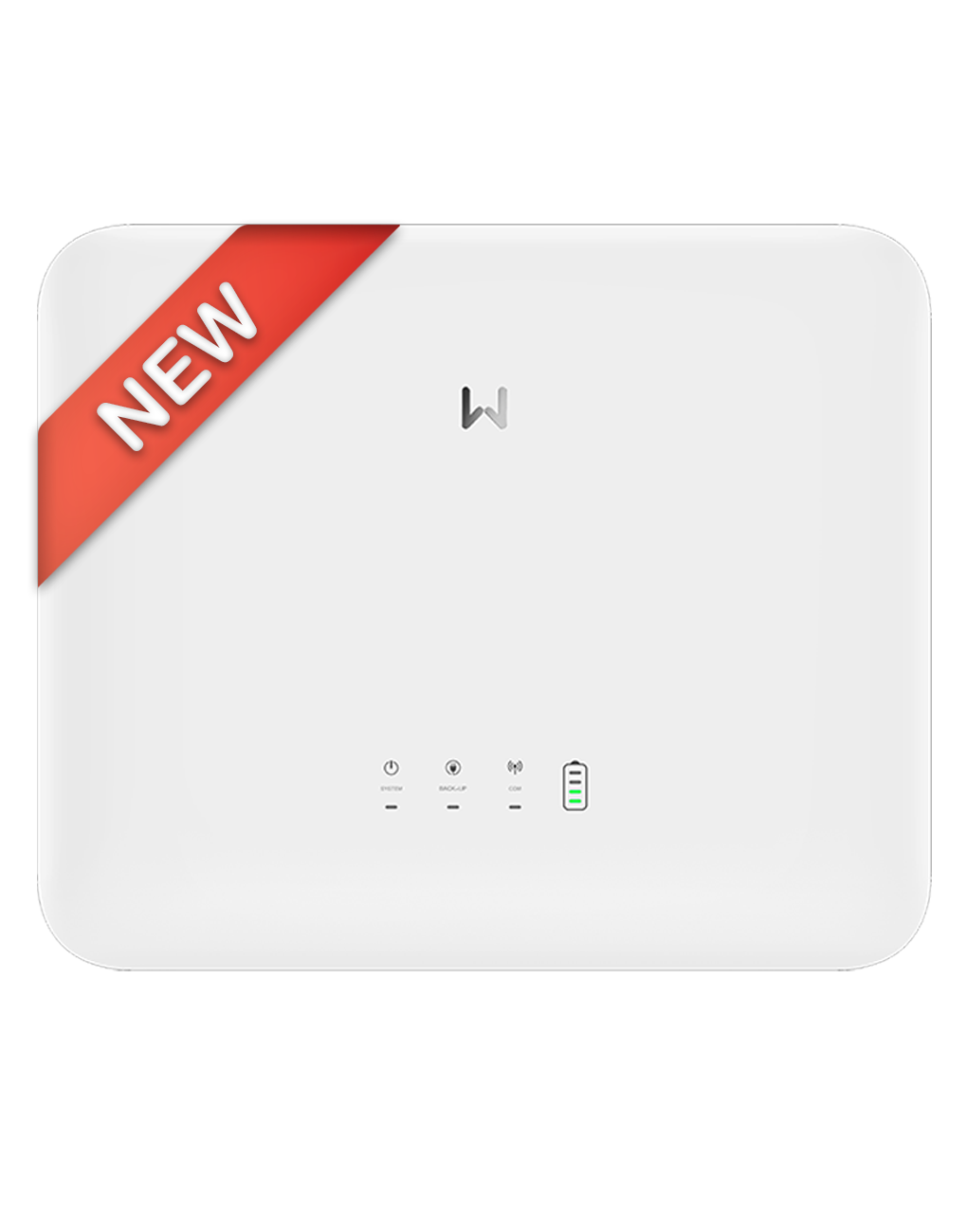

SBP G2 Series
Retrofit Battery Inverter I 3.6 - 6 kW I Single Phase I LV
STÁHNOUT PDF >>
.png)
Fanless & quiet
Elegant & compact
Retrofit inverter for optimised solar energy back-up
Ideal for solar power system upgrades and retrofit projects, the SBP G2 battery inverter is installed on the AC-side of the on-grid inverter and can be combined with a range of battery capacities, including GoodWe low-voltage battery series Lynx Home U. By facilitating maximum back-up of generated solar energy, house owners can achieve a high degree of autonomy.
Load & generator management
Parallel connection
USP level switching < 10ms
Smart home integration
Fanless & quiet
Elegant & compact
Smart and efficient operations
Integrated dynamic power export limit, load monitoring, and load & generator management. Supports multiple communication protocols for smart home integration.
Load & generator management
Smart home integration
Modern and compact design
Elegant and compact design, together with its fanless cooling operation, makes it a perfect choice for residential installations.
Fanless cooling
Easy to handle
Optimised energy autonomy
High backup output power with parallel operation capability also for backup output. Compatible with GoodWe Batteries and a wide range of LV battery brands.
3 in 1
Up to 3 inverters in parallel in one phase
10 ms
UPS level switching < 10ms
OVERVIEW
Model
GW6000-SBP-20
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging /Discharging Current(A)
120/120
Nominal Output Voltage (V)
220 / 230 / 240
Max. Apparent Power Output to Utility Grid (VA)
6000
Back-up Nominal Apparent Power (VA)
6000
Model
GW5000-SBP-20
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging /Discharging Current(A)
120/120
Nominal Output Voltage (V)
220 / 230 / 240
Max. Apparent Power Output to Utility Grid (VA)
5000
Back-up Nominal Apparent Power (VA)
5000
Model
GW3600-SBP-20
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging /Discharging Current(A)
75/75
Nominal Output Voltage (V)
220 / 230 / 240
Max. Apparent Power Output to Utility Grid (VA)
3680
Back-up Nominal Apparent Power (VA)
3680
