EM Series
3-5 kW I Single phase | up to 2 MPPTs | Hybrid inverter (LV)
STÁHNOUT PDF >>
UPS-level Switching
50A
undefined
undefined

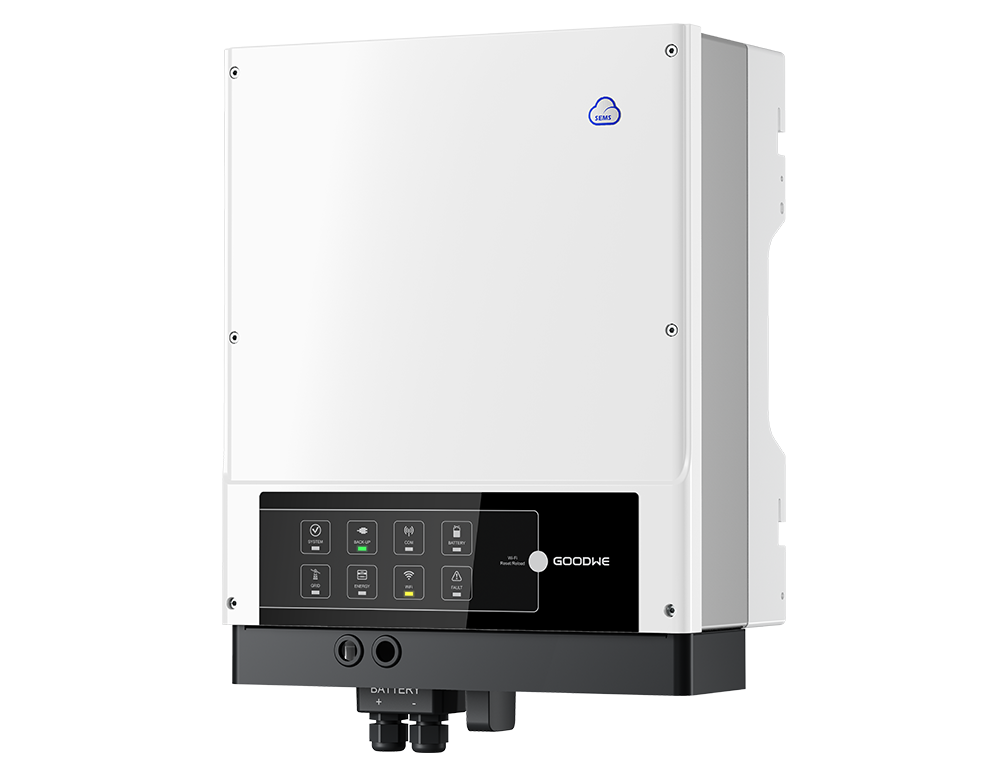

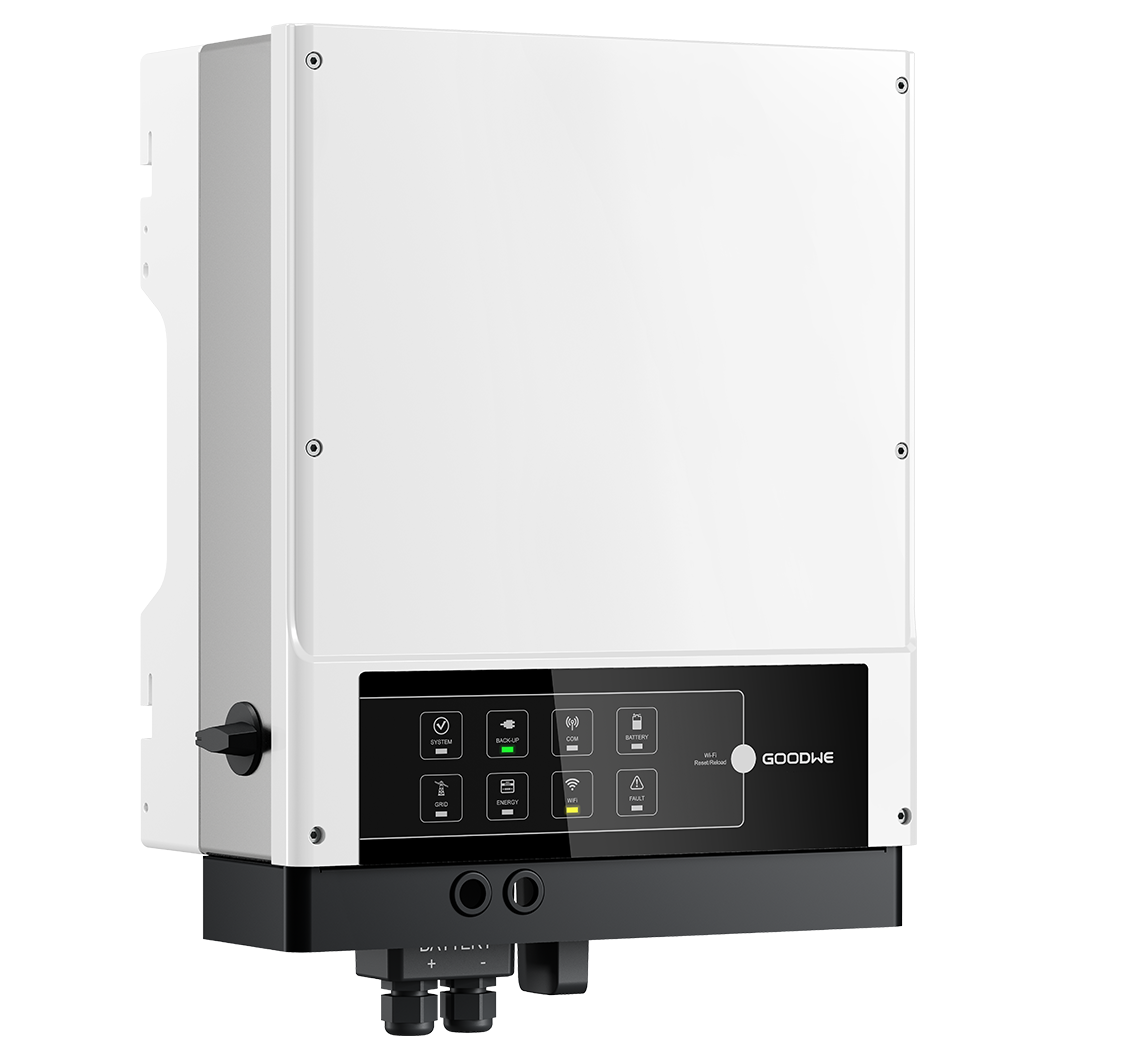

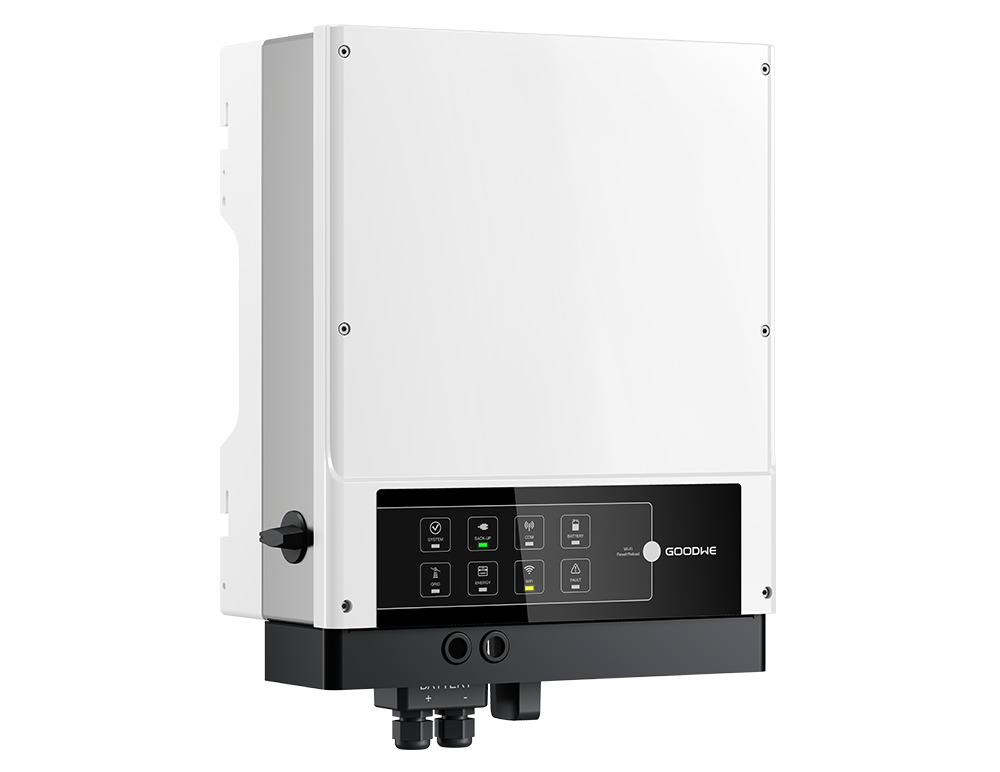

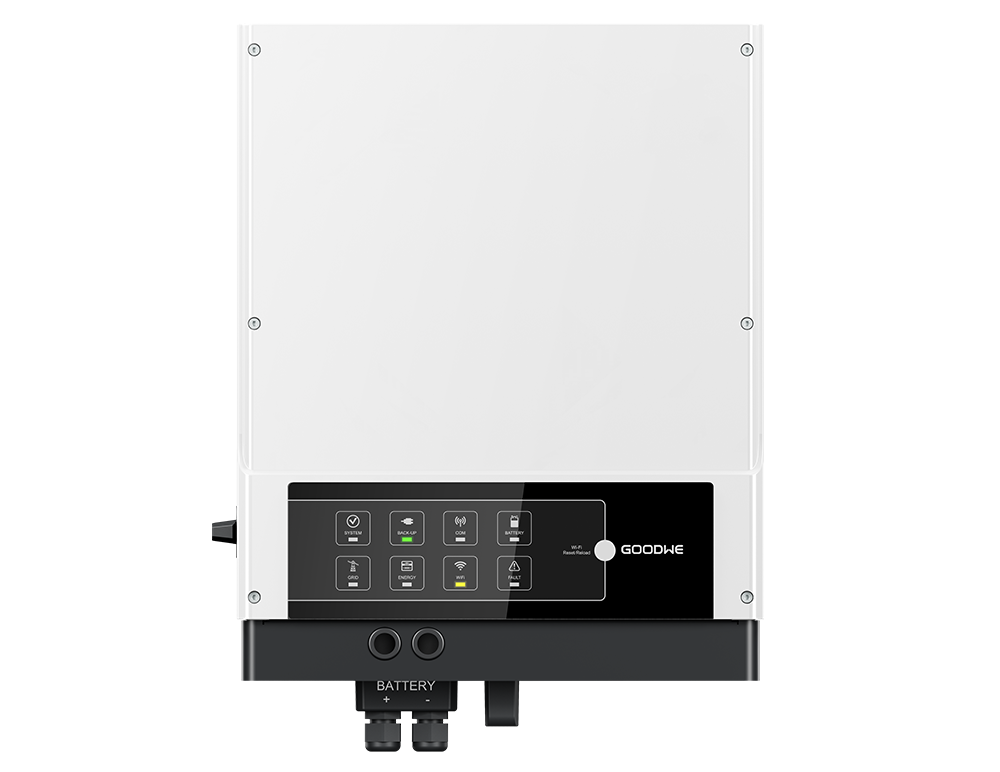

The GoodWe EM series bi-directional energy storage inverter can be used for on-grid PV systems, with the ability to control the flow of energy intelligently. During the day, the PV array generates electricity which can be provided either to the loads, fed into the grid or charge the battery, depending on the economics and set-up. The stored electricity can be released when the loads require it during the night. Additionally, the power grid can also charge the storage devices via the inverter. An all-round intelligent system for maximum energy flexibility.
Smart battery management function
50A charge & discharge capacity
Export control (Zero export)
IP65 dustproof and waterproof
<10 ms UPS-level switching
Fanless design, long lifespan
UPS-level Switching
50A
undefined
undefined
2.3 kW Charging/discharging Capacity
With 50A maximum charging/discharging current, GoodWe EM series can charge batteries with 2.3 kW power at once.
IP65 Protection Level
GoodWe ES Series is equipped with IP65 protection level, which allows both indoor and outdoor installation.
OVERVIEW
Model
GW5048-EM
Battery Voltage Range (V)
48
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
11/11
Max. Apparent Power Output to Utility Grid (VA)
5000
Back-up Nominal Apparent Power (VA)
2300
Model
GW3648-EM
Battery Voltage Range (V)
48
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
11/11
Max. Apparent Power Output to Utility Grid (VA)
3680
Back-up Nominal Apparent Power (VA)
2300
Model
GW3048-EM
Battery Voltage Range (V)
48
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
11
Max. Apparent Power Output to Utility Grid (VA)
3000
Back-up Nominal Apparent Power (VA)
2300
