BH Series
Retrofit Battery Inverter I 3-6 kW I Single Phase I HV
STÁHNOUT PDF >>
Fanless & quiet
Elegant & compact

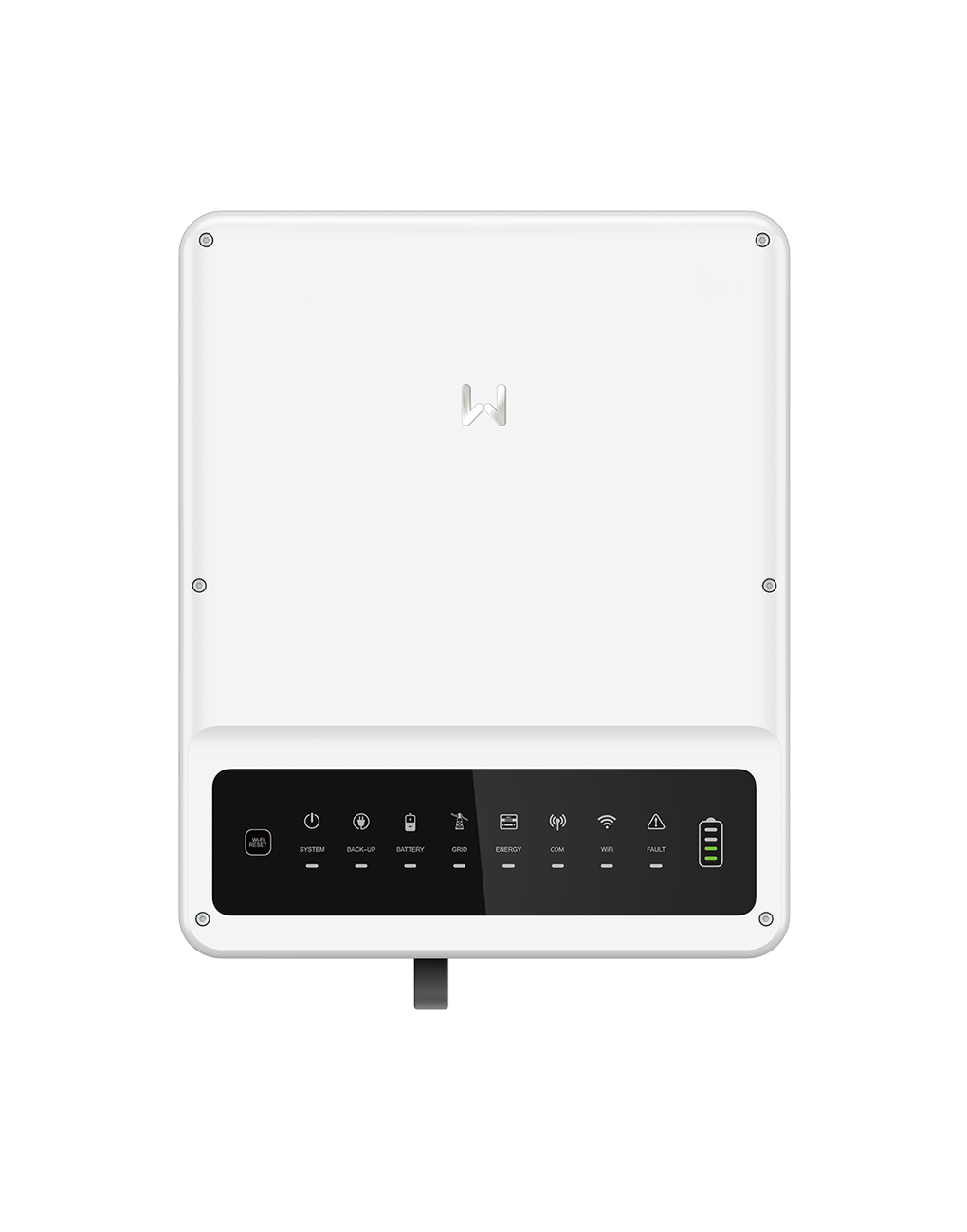

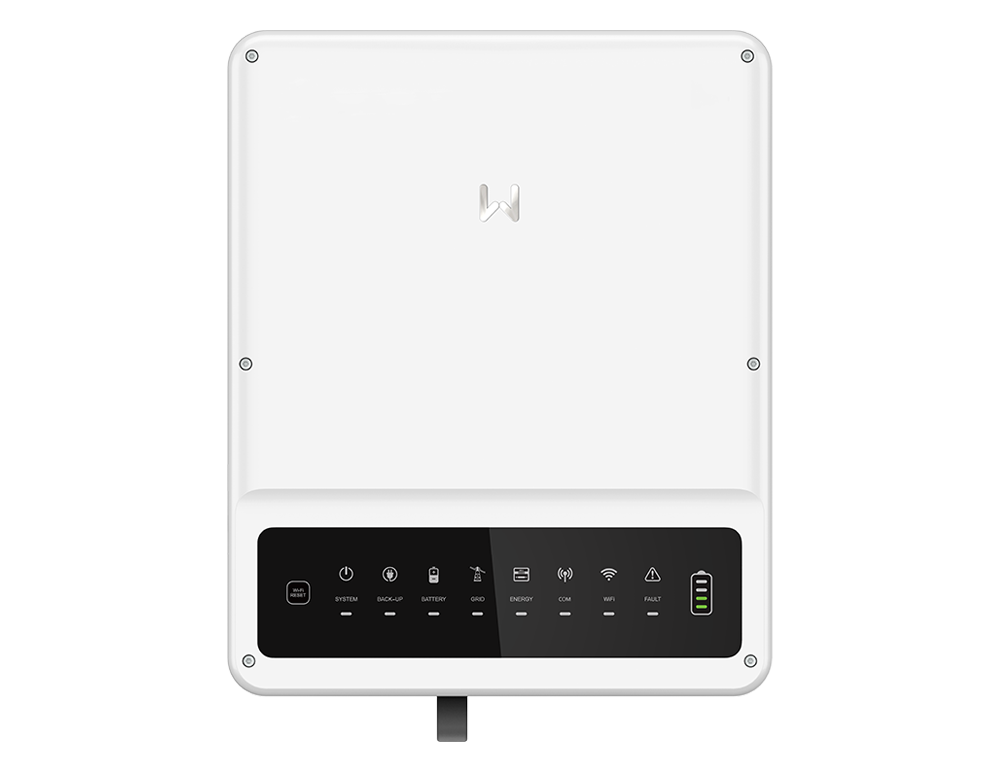

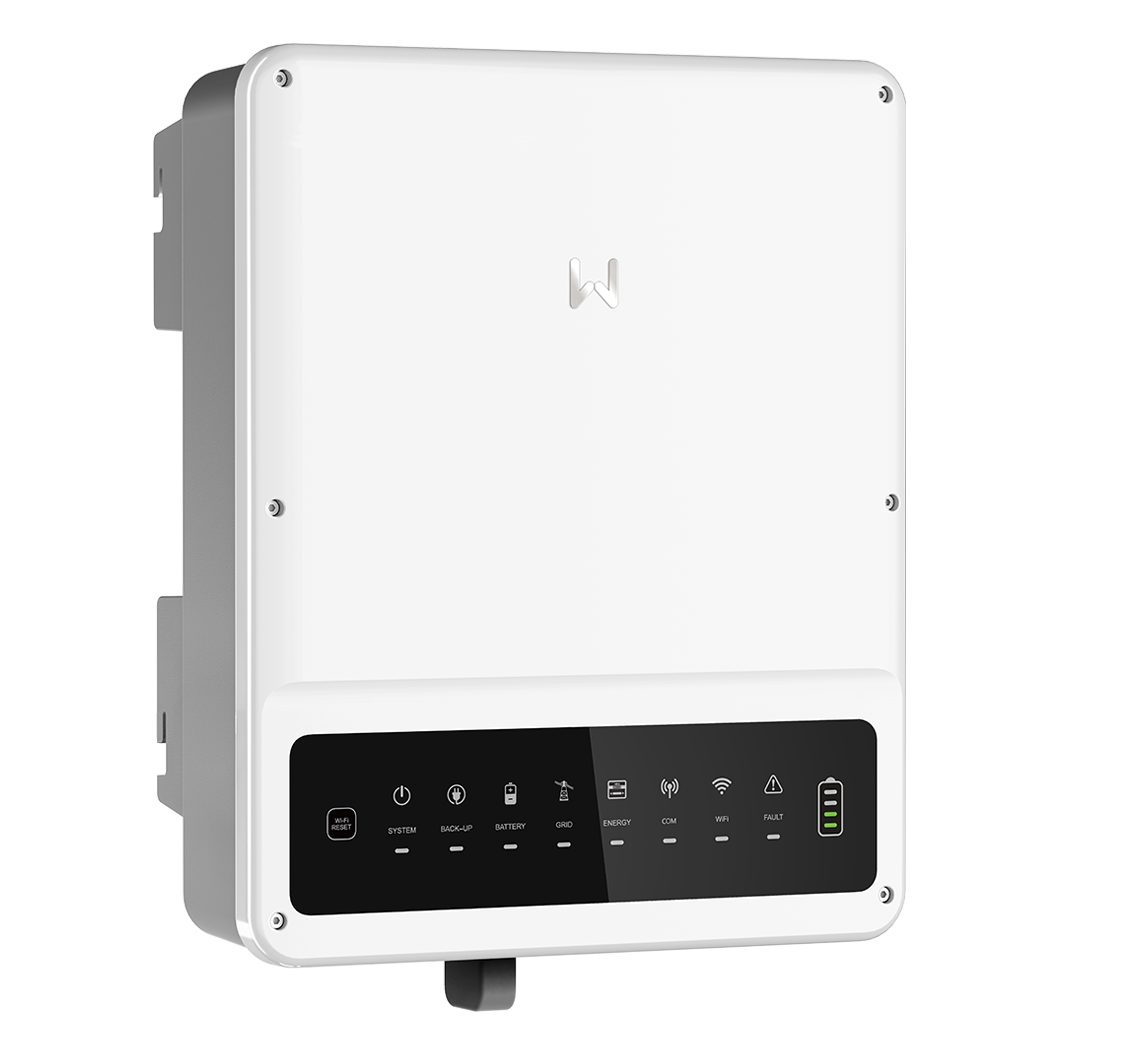

The GoodWe BH Series inverter is a single-phase, AC-coupled retrofit inverter compatible with a wide range of high voltage batteries from 85V to 460V. It is designed to maximize self-consumption with a UPS-level switching backup function. The pre-wired communication cables and AC connector’s Plug & Play simplify installation, operation, and maintenance.
<10 ms UPS-level switching
Smart home integration with multi-protocol communications
IP65 ingress protection
Quality and robust components
Fanless & quiet
Elegant & compact
Optimised Energy Autonomy
High backup output power with overload capability. Wide battery voltage range (85-460V) supports various battery capacities and power.
Wide battery voltage range
Compatible with multiple battery brands
Highest Safety Standards
Metal aluminium houseing with IP65 protects the inverter and makes it possible to install it both inside and outside.
IP65 ingress protection
High quality components
OVERVIEW
Model
GW3K-BH
Battery Voltage Range (V)
85~400
Max. Charging Current(A)
32/32
Max. Discharging Current (A)
230
Nominal Output Voltage (V)
3000/3300 (CEI 0-21)
Protection Degree
3000
Model
GW3600-BH
Battery Voltage Range (V)
85~460
Max. Charging Current(A)
25/25
Max. Discharging Current (A)
230
Nominal Output Voltage (V)
3600/3960 (CEI 0-21)
Protection Degree
3600
Model
GW5000-BH
Battery Voltage Range (V)
85~460
Max. Charging Current(A)
25/25
Max. Discharging Current (A)
230
Nominal Output Voltage (V)
5000/5500 (CEI 0-21)
Protection Degree
5000
Model
GW6000-BH
Battery Voltage Range (V)
85~460
Max. Charging Current(A)
25/25
Max. Discharging Current (A)
230
Nominal Output Voltage (V)
6000/6600 (CEI 0-21)
Protection Degree
6000
